Mercedes-Benz Airmatic Air Suspension Repair in Dallas

Why does the car sag overnight, and how do we find the leak?

Air escapes from rubber and from fittings, almost never from steel. The strut's rolling bellows cracks at the fold where it flexes most, the top seal between the air chamber and the damper weeps, and the push-in collar fittings on the plastic lines loosen where they enter the strut or the valve block. Heat accelerates all three, and Dallas summers are hard on bellows.

We start in XENTRY rather than with soapy water. The control unit reports the pressure at each corner and the number of compressor cycles; a corner that loses pressure with the car parked and its valve closed has a strut leak, while a drop on all four with the reservoir line open points to the valve block or the reservoir. Only then does the soap come out, aimed where the data pointed.

A front strut that is low after a night in the driveway and recovers after the compressor runs is the classic presentation; a car that drops evenly, or only after a long highway run when the valve block is hot, is a different fault.

Why do compressors fail, and why is the relay replaced with them?

The compressor is a single-piston pump with a PTFE ring, driven by a small electric motor, and it is designed to run in short bursts to top up the system. When a leak forces it to run for minutes at a time it overheats; the ring wears, output pressure drops, and eventually the motor's thermal protection or the windings fail. Most compressor failures are the symptom of an unaddressed leak.

The relay that switches the compressor carries a heavy current, and a compressor that runs constantly cooks its contacts. A relay that sticks closed keeps the compressor running after the key is off until it burns out. A new compressor from us always gets a new relay, and the leak that caused the overrun is fixed in the same visit.

On W220 and W211 cars the Wabco compressor sits behind the front wheel-well liner; on W164 and X164 it is mounted under the body behind a shield, exposed to road debris. The $700–$1,300 range covers compressor, relay, dryer and fittings.

When is the valve block the fault instead of a strut?

The valve block is a manifold of solenoid valves, one per corner plus the reservoir, mounted near the compressor. When a solenoid stops sealing, air bleeds from a corner back through the block, and the car sags on that side without any leak at the strut. When the block's internal seals age, the whole car can fall together.

The test is simple in XENTRY: command each valve closed in turn and watch the corner pressures. A strut that holds pressure with its valve closed but drops with it open is being bled by the block. We replace the block as an assembly, $450–$850, with new line collars.

What does a strut replacement involve on a W211 or W164?

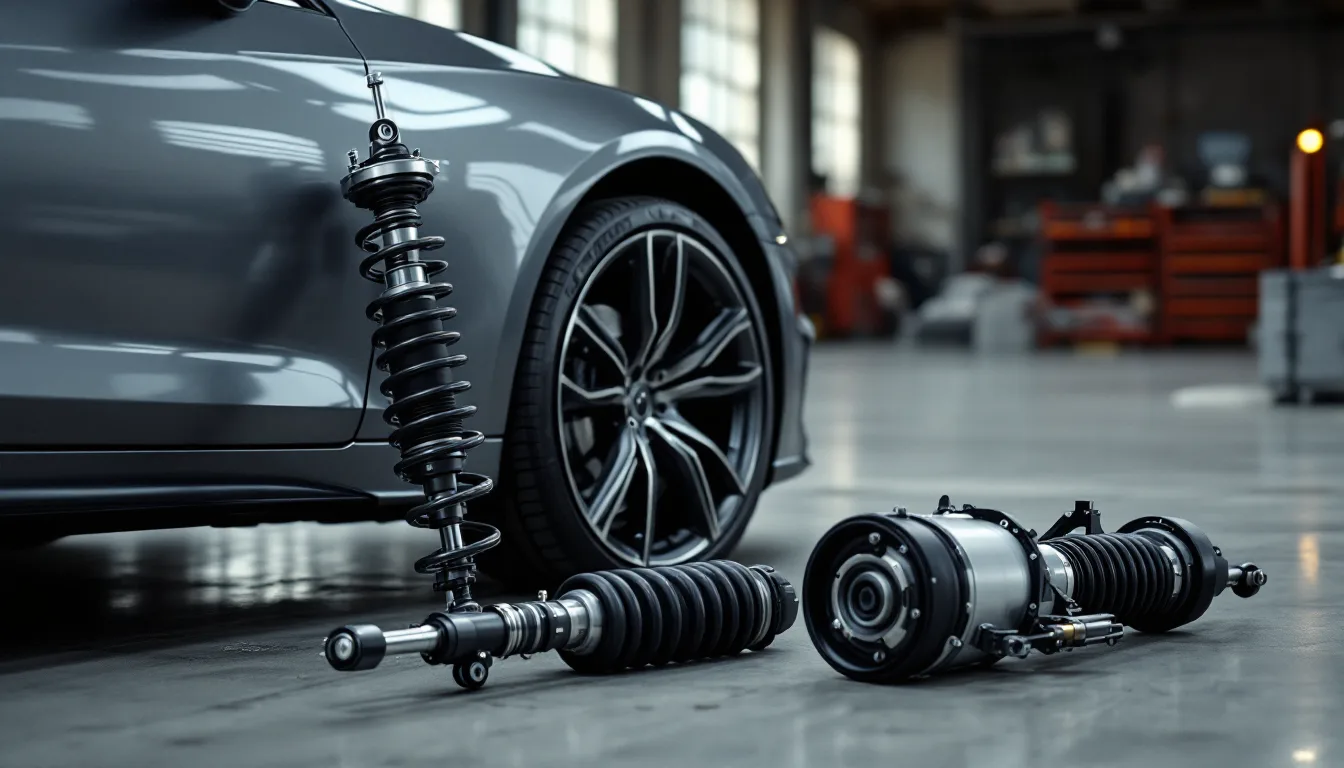

A front Airmatic strut on a W211 or W164 is a complete unit: air spring, ADS damper and the upper mount in one assembly, which is why the per-corner price is $1,100–$2,200. The car goes on the lift with the system depressurized through XENTRY, the air line and the ADS connector are released, the lower mount and the top nuts come off and the strut is withdrawn through the wheel well.

The new strut is fitted with a new air line collar and O-ring, the connector is seated, and the system is pressurized while the car is still in the air so the bellows unfolds without creasing. Rear air springs on a W211 and W212 are separate from the shock absorbers and cost less to replace; rear struts on a W220 or W221 are combined units like the fronts.

We recommend fronts in pairs when both are original, because the second bellows is the same age; where one side was replaced recently, we do the single corner.

Why does the system need calibration after any repair?

After any strut, level sensor or control arm work the system has to be taught where level is. Mercedes specifies a ride height for each axle measured from the wheel center to the fender lip, and the technician enters the measured values into XENTRY, which stores the offsets for the level sensors. Skip it and the car sits crooked, the compressor chases an unreachable target and the headlights aim wrong.

The same session runs an ADS actuation test, commanding each damper through its settings, and clears the Airmatic fault memory so any message that returns is new. A camber check follows front strut work because the upper mount moves the geometry.

Should you convert Airmatic to coil springs?

Coil conversion kits exist for most Airmatic cars, and for a vehicle at the end of its life they are a way to keep it driving. We will fit one if you ask. What you should know first is that the ADS damping no longer works, the ride becomes a fixed compromise, the Airmatic warning has to be defeated electronically, and resale buyers of an S-Class or GL notice.

For a car you intend to keep, repairing the system with quality struts and fixing the leak costs more up front and returns the ride it was designed for. Most owners of a W221 or W166 in good condition choose repair; owners of a very high-mileage W220 sometimes convert, and we quote both.

What does Airmatic repair cost in Dallas?

The published range is $450–$2,400 per repair because the fault decides the figure. A compressor relay is $120–$220, a valve block $450–$850, a compressor with relay and dryer $700–$1,300 and a strut $1,100–$2,200 per corner. Two front struts are quoted as two lines.

Model matters within each line: a W222 strut costs more than a W211 one, and X164 compressors cost more than W211 units. Each Airmatic repair is covered for 2 years parts and 2 years labor, up to 24,000 miles, nationwide, calibration included.
